Ever wondered what happens when you type in a URL in an address bar in a browser?

#webdev #showdev #beginners

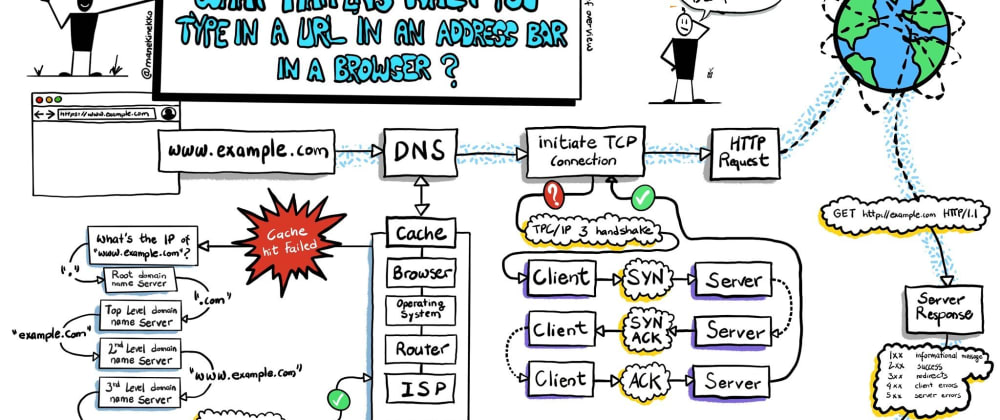

Here is a brief overview of what happens when you type in a URL in a address bar in a browser...

This sketch note is under CC BY-NC-SA license.
