Deploy codes to remote server over SSH method

  • Create a Git Repository name "deploycode" add README.md file mention description as deploycodetoremoteserver.

  • Clone the Git repo to local machine.

  • Create Git branch as "dev" & "test"

  • Create index.html file for both branches

kannan@kannan-PC:~/deploycode$ ls
index.html  README.md
kannan@kannan-PC:~/deploycode$ cat index.html
<h1>Testcode</h1>
<h1>testcode version-1</h1>
<h1>testcode version-2</h1>

kannan@kannan-PC:~/deploycode$ git branch
  dev
  main
* test
kannan@kannan-PC:~/deploycode$ git checkout dev
Switched to branch 'dev'
kannan@kannan-PC:~/deploycode$ git branch
* dev
  main
  test
kannan@kannan-PC:~/deploycode$ ls
index.html  README.md
kannan@kannan-PC:~/deploycode$ cat index.html
<h1>Devcode </h1>
<h1>dev code version-1</h1>
<h1>dev code version-2</h1>

Enter fullscreen mode Exit fullscreen mode
  • Git add . and commit, Push to the Git repo.

Remote server setup

  • Create a remote server

  • Do the "apt update" and and "install apache2" on the both server

  • Do the the "systemctl start, enable, status of the apache service"

Jenkins setup

  • Go to Jenkins dashboard > Manage Jenkins > Plugins > "publish over SSH"

  • Manage Jenkins > System > SSH Servers (Add the SSH server details for dev and test)

Image description

Image description

  • Click on advance "Use password authentication" enter the password for the remote server.

Image description

  • Test run the configuration to check the remote server connectivity.

Jenkins Project for devserver.

  • Go to Jenkins dashboard > Add items > Freestyle project> ok

  • Select the Github project and paste the Git repo "URL".
    Image description

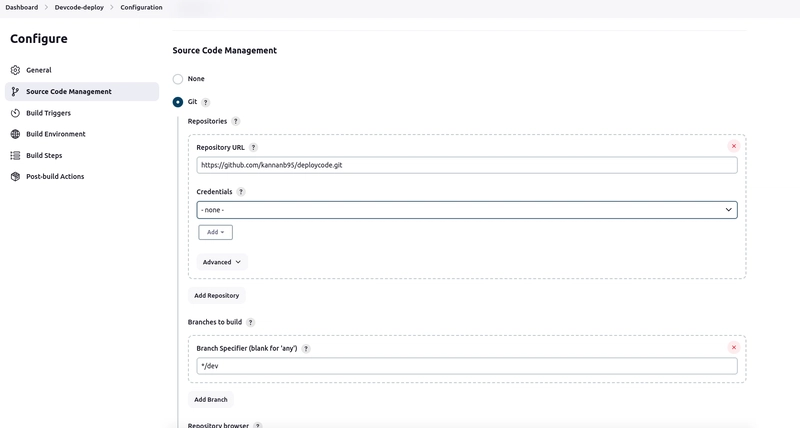

  • Copy the Git repo http url and mention the branch as "dev"

Image description

  • Select the "Poll SCM" and set the schedule period.
    Image description

  • Select send files or execute commands over SSH.
    Image description

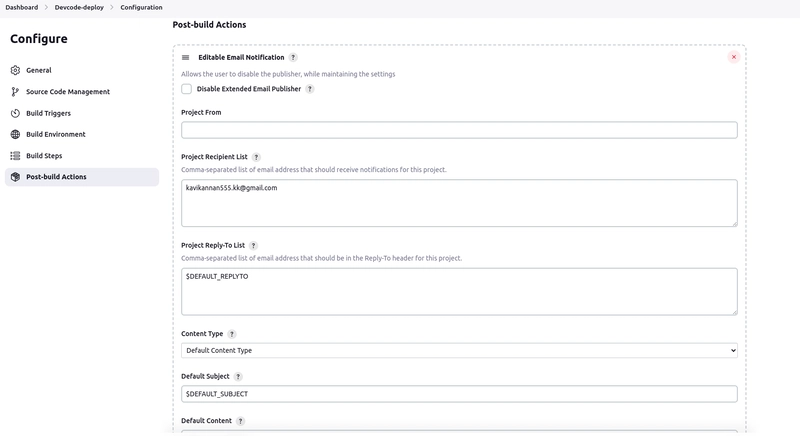

  • Select Editable e mail Notification, add the email on "Project recipient list"

Image description

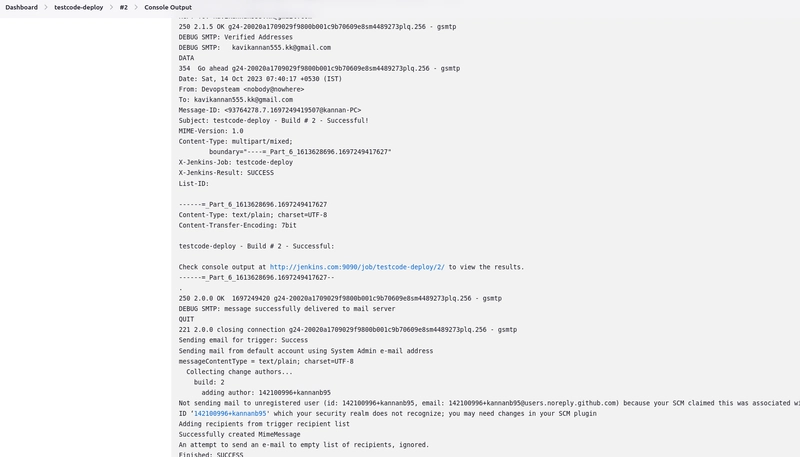

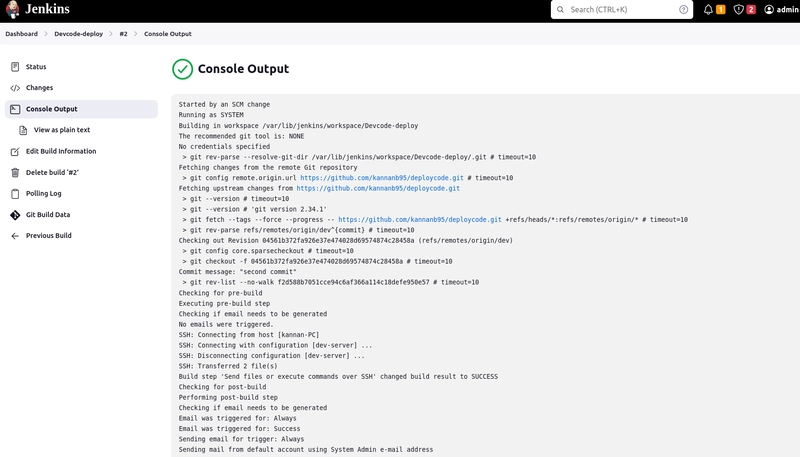

  • Once done it will automatically Build Now and provides the output on Console output.

Image description

Image description

Jenkins Project for testserver.

  • Follow the same configuration procedure as the above "General, source code management, Build trigger, Post buils action".
  • Only need to modify the Build steps to run the "testserver"

Image description

  • Once done it will automatically Build Now and provides the output on Console output.

Image description

Image description
