Flutter Hero Animation and PageRouteBuilder Transition

jedipixels profile image Marco Napoli ・3 min read

Video Tutorial

Blog Article

Sample Project

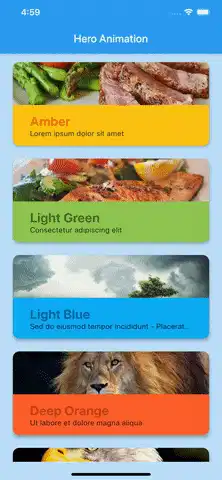

Hero Animation and PageRouteBuilder Transition

Using Hero, Navigator and PageRouteBuilder to create custom Transitions

In this project, you are going to take a look at:

  • How Hero animation allows a widget transition to fly into place from one page to another
  • How to use the PageRouteBuilder to create custom navigation transitions with Hero animation

Hero Widget

The Hero widget is a great out-of-the-box animation to convey the navigation action of a widget flying into place from one page to another. The Hero animation is a shared element transition (animation) between two different pages.

To visualize the animation, imagine seeing a superhero flying into action. For example, you have a list of journal entries with a photo thumbnail, the user selects an entry, and you see the photo thumbnail transition to the detail page by moving and growing to full size. The photo thumbnail is the superhero, and when tapped, it flies into action by moving from the list page to the detail page and lands perfectly on the correct location at the top of the detail page showing the full photo. When the detail page is dismissed, the Hero widget flies back to the original page, position, and size.

Hero Widget Code

The Hero widget has the animation features built in; there’s no need to write custom code to handle the size and animation between pages.

The Hero child widget is marked for hero animation. When the Navigator pushes or pops a PageRoute, the entire screen’s content is replaced. This means during the animation transition the Hero widget is not shown in the original position in both the old and new routes, but it moves and resizes from one page to another. Very important, each Hero tag must be unique and match on both the originating and landing pages.

// Home Page
Hero(
  tag: 'image',
  child: Image.asset('assets/image.png'),
)
// Details page
Hero(
  tag: 'image',
  child: Image.asset('assets/image.png'),
)
Enter fullscreen mode Exit fullscreen mode

PageRouteBuilder

The PageRouteBuilder class is used to create custom route transitions. PageRouteBuilder provides an Animation object. This Animation can be used with Tween and Curve objects to customize the transition animation.

You need to define a pageBuilder function to create the route's content and define the transitionBuilder function to add transition animation.

Navigator.of(context).push(
  PageRouteBuilder(
    transitionDuration: Duration(milliseconds: 1000),
    pageBuilder: (
        BuildContext context,
        Animation<double> animation,
        Animation<double> secondaryAnimation) {
      return Details();
    },
    transitionsBuilder: (
        BuildContext context,
        Animation<double> animation,
        Animation<double> secondaryAnimation,
        Widget child) {
      return Align(
        child: FadeTransition(
          opacity: animation,
          child: child,
        ),
      );
    },
  ),
);
Enter fullscreen mode Exit fullscreen mode

How it Works

Hero Widget

The hero animation is a powerful built-in animation to convey an action by automatically animating a widget from one page to another to the correct size and position. When you navigate back to the previous page, the Hero animates back to the original position. Each Hero tag must be unique and match on both the originating and landing pages.

Navigator PageRouteBuilder

The PageRouteBuilder class is used to create custom route transitions. PageRouteBuilder provides an Animation object. This Animation can be used with Tween and Curve objects to customize the transition animation.


Find me on Twitter @JediPixels
For more information: JediPixels.dev
